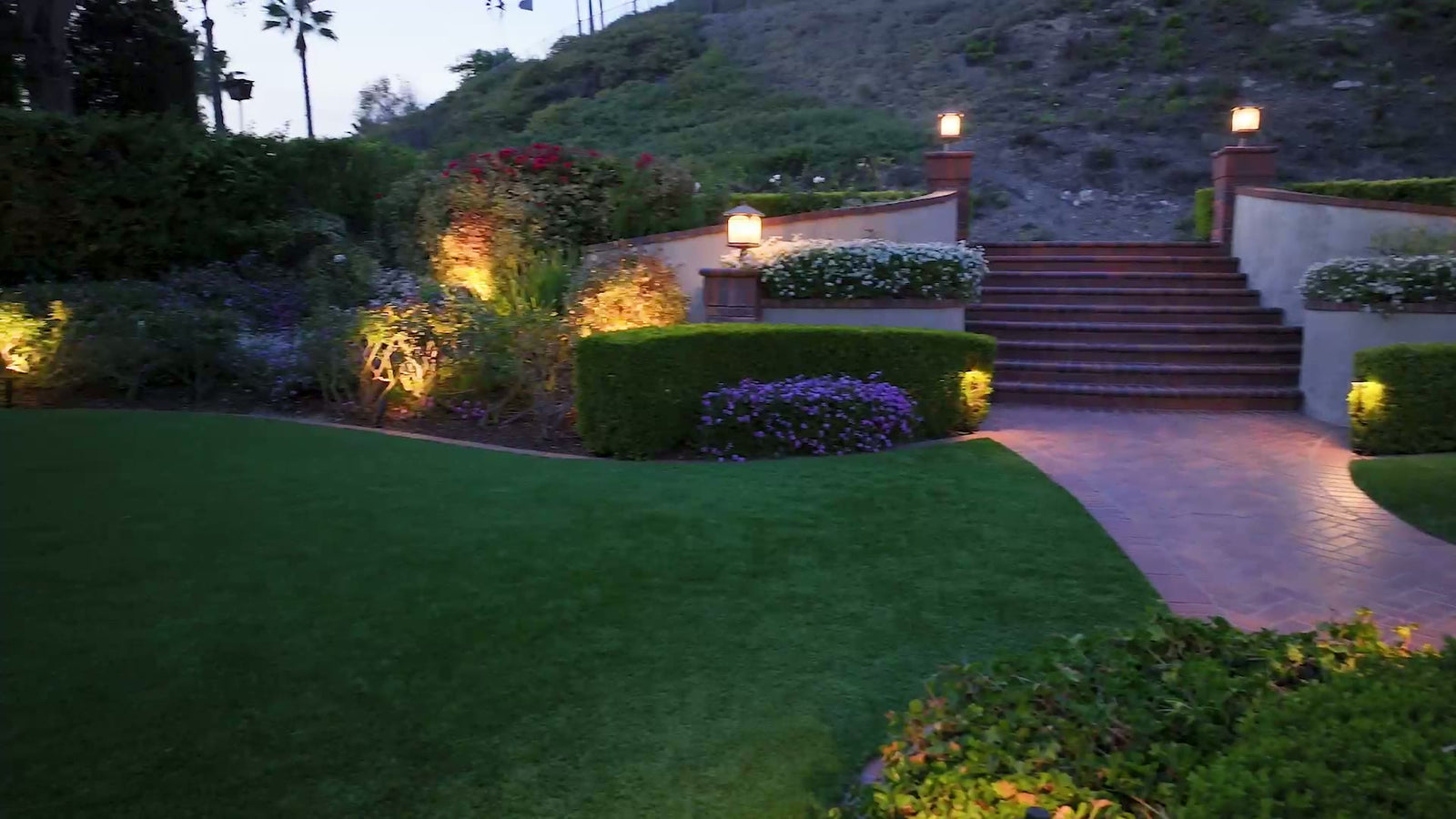

Low-voltage landscape lighting is one of the most effective ways to improve your home's curb appeal, safety, and outdoor living spaces. From illuminating walkways and trees to highlighting architectural features, a properly installed lighting system can completely transform a property after dark.
The good news is that 12-volt landscape lighting is also relatively straightforward to install when the system is properly planned.
In this guide, Lone Mountain Lighting walks you through the complete process—from planning fixture locations and sizing your transformer to running cable, making connections, testing voltage, and aiming your lights.
Whether you're a homeowner tackling your first outdoor lighting project or a contractor looking for a practical installation reference, this guide will help you build a reliable, professional-looking low-voltage landscape lighting system.
Free Landscape Lighting Installation Checklist
Download our printable installation checklist to help plan, install, test, and finish your low-voltage landscape lighting project.
Before You Begin
This guide provides general installation guidance for 12V low-voltage landscape lighting systems. Always follow the installation instructions supplied with your transformer, fixtures, lamps, cable, and accessories, as well as applicable electrical codes and local requirements.
Always call 811 before digging. If you're unsure about electrical connections, transformer installation, code requirements, or safe installation practices, consult a qualified electrical or landscape-lighting professional.
What You'll Need
Before beginning your installation, gather the components and tools needed for your project.
Landscape Lighting Components
- Low-voltage landscape lighting fixtures
- Appropriately sized transformer
- Direct-burial landscape lighting cable
- Waterproof wire connectors
- LED lamps, if required by your fixtures
- Stakes, risers, mounting hardware, or other fixture accessories
Basic Tools
- Shovel or trenching tool
- Wire cutters
- Wire strippers
- Screwdrivers
- Tape measure
- Multimeter or voltage tester
- Work gloves
- Eye protection
Having everything ready before installation makes the project considerably easier.
Step 1: Plan Your Landscape Lighting Layout
Don't start digging yet.
The most important part of a successful landscape lighting installation happens before any cable goes into the ground.
Walk around the property during daylight and again after sunset. Identify the areas you want to illuminate and determine what each fixture needs to accomplish.
Consider:
- Walkways and paths
- Front entrances
- Driveways
- Trees
- Garden beds
- Architectural features
- Retaining walls
- Steps
- Patios
- Outdoor kitchens
- Decks
- Water features
Create a simple sketch of the property and mark the approximate location of every fixture.
You don't need architectural drawings. A basic diagram showing the transformer, fixture locations, and proposed cable routes is enough for most residential projects.
Think in Lighting Zones
Instead of treating the entire property as one long lighting run, organize the system into logical areas.
For example:
Zone 1: Front walkway and entry
Zone 2: Trees and architectural uplighting
Zone 3: Backyard and patio
This makes cable routing, troubleshooting, future expansion, and transformer planning much easier.
Step 2: Determine Fixture Placement
Once you've identified what you want to illuminate, determine which fixtures are appropriate for each location.
Path Lights
Best for:
- Walkways
- Garden paths
- Planting beds
- Driveway borders
Path light spacing varies based on fixture output, mounting height, beam pattern, and desired effect. As a starting point, many residential installations use approximately 8–12 feet between fixtures.
Avoid placing path lights directly across from each other whenever possible. Staggering them often creates a more natural appearance.
Spot Lights and Up Lights
Best for:
- Trees
- Columns
- Architectural details
- Stonework
- Focal points
Fixture distance from the illuminated object depends on the desired beam spread and effect.
Move the fixture closer for a tighter, more dramatic effect or farther away for broader coverage.
Well Lights
Best for:
- Trees
- Architectural uplighting
- Areas where the fixture should remain discreet
Because well lights sit at or near ground level, position them where they won't collect excessive debris or interfere with normal landscape maintenance.
Hardscape Lights
Best for:
- Retaining walls
- Seating walls
- Outdoor kitchens
- Steps
- Masonry features
These are typically mounted underneath caps, ledges, or other structural surfaces to create soft downward illumination.
Pro Tip: Don't permanently set every fixture before seeing the system at night. Leave yourself enough flexibility to move, rotate, raise, lower, or re-aim fixtures during final adjustment.
Step 3: Calculate the Total Lighting Load
Before selecting your transformer, determine how much power your system requires.
Look at the wattage of every LED lamp or integrated LED fixture in the system.
For example:
| Fixture | Quantity | Watts Each | Total |
|---|---|---|---|
| Path Lights | 8 | 4W | 32W |
| Up Lights | 6 | 6W | 36W |
| Hardscape Lights | 4 | 3W | 12W |
| Total | 80W |
In this example, the connected lighting load is 80 watts.
Step 4: Choose the Right Transformer
Your landscape lighting transformer converts standard household electricity into the low-voltage power used by your lighting system.
Transformer capacity should exceed the total connected fixture load.
A useful planning formula is:
Minimum Transformer Capacity = Total Connected Wattage ÷ 0.80
Using our 80-watt example:
80W ÷ 0.80 = 100W
That means you'd want a transformer rated for at least 100 watts.
If you're planning to expand the system later, consider moving up to the next appropriate transformer size rather than purchasing one that leaves little additional capacity.
Example Transformer Sizing
| Connected Fixture Load | Minimum Capacity Using 80% Guideline |
|---|---|
| 60W | 75W |
| 100W | 125W |
| 120W | 150W |
| 200W | 250W |
| 240W | 300W |
| 480W | 600W |
Always verify the manufacturer's requirements for the specific transformer you're installing.
Pro Tip: Landscape lighting systems tend to grow. Homeowners frequently add trees, garden beds, patios, or additional pathways later. Planning some expansion capacity now can save you from replacing the transformer later.
Step 5: Plan Your Cable Runs
Once the transformer and fixture locations are established, plan how the low-voltage cable will reach each lighting zone.
There are several ways to wire a landscape lighting system, but avoid automatically placing every fixture on one extremely long cable run.
Multiple runs back to the transformer can make it easier to:
- Reduce voltage drop
- Balance electrical loads
- Troubleshoot problems
- Expand the system later
- Control different areas
This approach is particularly useful on larger properties.
Leave Service Loops
Leave some additional cable near fixtures and connection points rather than cutting every cable to the exact required length.
A service loop gives you flexibility if a fixture needs to be:
- Repositioned
- Raised
- Replaced
- Serviced later
That small amount of extra cable can save significant time during future maintenance.
Step 6: Understand Voltage Drop
Voltage drop occurs as electricity travels through landscape lighting cable.
The farther electricity travels—and the greater the electrical load on the cable—the more voltage can be lost along the way.
Excessive voltage drop can cause:
- Dim fixtures
- Uneven brightness
- Inconsistent performance
- Problems at fixtures farthest from the transformer
Several factors influence voltage drop:
- Wire gauge
- Cable length
- Fixture wattage
- Number of fixtures
- Fixture placement along the run
- Wiring layout
- Transformer output tap
This is why there isn't one universal rule such as "14-gauge cable can always run X feet."
Ways to Manage Voltage Drop
Depending on the system, installers may:
- Use heavier-gauge cable
- Create multiple cable runs
- Reduce the load on individual runs
- Reconfigure fixture distribution
- Use appropriate higher-voltage taps on compatible multi-tap transformers
The objective is to deliver voltage within the acceptable operating range of the lamps or integrated fixtures being used.
Important: Don't simply move a long run to a higher transformer tap without testing it. Measure voltage while the system is operating and confirm that both the closest and farthest fixtures remain within the manufacturer's specified input-voltage range.
Step 7: Install the Transformer
Install the transformer according to its manufacturer's instructions and applicable electrical requirements.
The transformer should be:
- Securely mounted
- Accessible for maintenance
- Properly ventilated
- Located appropriately for outdoor use
- Connected to an appropriate GFCI-protected power source where required
Do not energize the lighting circuits until the system connections are complete and you've performed the appropriate checks.
If your transformer offers multiple output taps, select the appropriate tap for each cable run based on the system design and actual voltage measurements.
Step 8: Lay Out and Route the Cable
Before burying anything, lay your landscape cable on top of the ground following the planned route.
Run it past each fixture location and confirm that you have enough cable for connections and service loops.
At this stage, verify:
- Fixture positions
- Cable routes
- Run lengths
- Transformer connections
- Potential obstacles
- Future expansion areas
Once everything looks correct, route or bury the cable according to the cable and equipment manufacturers' instructions and all applicable local requirements.
Do not assume one burial depth applies to every installation. Requirements can vary depending on location, equipment, local code, and whether the cable passes beneath driveways, walkways, or other areas.
And again: call 811 before digging.
Step 9: Install the Fixtures
Now install each fixture according to its mounting method.
For stake-mounted fixtures:
- Create a pilot hole in compact soil when necessary.
- Insert the stake carefully.
- Avoid forcing or hammering the fixture body into hard ground.
- Attach the fixture securely.
- Leave the final aiming slightly adjustable.
For hardscape, deck, wall, or specialty fixtures, follow the mounting instructions supplied with the product.
If the fixture uses a replaceable LED lamp, install the correct lamp type and wattage.
Common landscape lighting lamp types may include:
- G4
- MR16
- PAR36
Always confirm compatibility with the fixture.
Step 10: Make Weather-Resistant Connections
Connections are one of the most important parts of a reliable landscape lighting system.
Outdoor connections are exposed to:
- Soil
- Irrigation
- Rain
- Humidity
- Temperature changes
Use connectors specifically designed and listed for the intended outdoor or direct-burial application, and install them according to the connector manufacturer's instructions.
Avoid leaving exposed copper or using improvised connection methods.
A poor connection may work initially but become a source of intermittent operation, corrosion, or voltage loss later.
Contractor Tip: Consistent connection practices make future troubleshooting significantly easier. Document how each run is wired and keep connections accessible when practical.
Step 11: Power On and Test the System
Once all connections have been completed and checked, power on the transformer.
First confirm that every fixture illuminates.
Then inspect each lighting run.
Look for:
- Fixtures that appear unusually dim
- Differences in brightness
- Flickering
- Loose connections
- Incorrect lamp installation
- Unexpected transformer behavior
Measure Voltage Under Load
For larger systems or longer cable runs, use a multimeter to measure voltage at representative fixtures while the system is operating.
Pay particular attention to fixtures near the beginning and end of longer runs.
The correct voltage range depends on the specific LED lamp or integrated fixture being used, so compare your measurements with the manufacturer's operating specifications.
If voltage is outside that range, investigate the cable layout, wire gauge, load distribution, connections, and transformer tap before completing the installation.
Step 12: Aim Your Landscape Lights at Night
This is one of the most important—and most frequently overlooked—steps.
Don't finalize fixture aiming during daylight.
Wait until after dark and walk through the property from multiple viewing positions.
Look at the system from:
- The street
- Driveway
- Front entrance
- Inside the house
- Patio
- Outdoor seating areas
Adjust fixtures to create balance and eliminate glare.
Remember: Brighter Isn't Always Better
Professional landscape lighting uses contrast.
You don't need to illuminate every tree, shrub, wall, and walkway equally.
Allow darker areas to remain between focal points. Those shadows create depth and make illuminated features stand out.
If a fixture shines directly into someone's eyes, adjust the angle or use an appropriate shield or glare-control accessory.
Step 13: Program the Lighting Controls
Depending on your transformer, your system may use:
- Mechanical timers
- Digital timers
- Photocells
- Dusk-to-dawn controls
- Astronomical timers
- Smart controls
Choose a schedule that fits how you use the property.
For example, many homeowners want landscape lighting to turn on automatically at dusk and turn off later in the evening rather than remain illuminated until sunrise.
Test the controls before considering the installation complete.
Step 14: Finish and Document the Installation
Once you've confirmed that the system operates correctly:
- Complete the cable burial or concealment
- Restore disturbed landscaping
- Make final fixture adjustments
- Clean fixture lenses
- Label transformer circuits where appropriate
- Record transformer settings
- Save your original lighting layout
Contractors should consider creating a simple as-built diagram showing cable routes, fixture locations, connection points, and transformer runs.
Homeowners will appreciate it—and whoever services the system later will appreciate it even more.
Common Landscape Lighting Installation Mistakes
Avoid these common mistakes:
Installing Too Many Lights
More fixtures don't automatically create a better design. Focus on important architectural and landscape features.
Choosing a Transformer With No Expansion Capacity
Leave reasonable room for future additions.
Using One Long Cable Run for Everything
Multiple runs can simplify voltage management and troubleshooting.
Ignoring Voltage Drop
Long runs and heavier loads require additional planning.
Making Poor Outdoor Connections
Use connection products appropriate for the environment and follow their installation instructions.
Finalizing Fixture Positions During the Day
Always perform final aiming after dark.
Creating Glare
The viewer should notice the illuminated landscape—not stare directly into the light source.
Failing to Document the Installation
A simple system diagram can save hours of troubleshooting later.
DIY vs. Professional Landscape Lighting Installation
Many homeowners are comfortable installing smaller low-voltage landscape lighting systems themselves.
A straightforward system with a few path lights and accent fixtures may be a manageable DIY project for someone comfortable following product instructions and basic electrical safety practices.
Consider professional assistance when the project involves:
- Large properties
- Numerous fixtures
- Multiple lighting zones
- Very long cable runs
- Complex voltage-drop calculations
- Difficult mounting locations
- Electrical work beyond the low-voltage system
- Local code or permitting questions
A professional landscape lighting installer can also provide valuable expertise in fixture placement and nighttime design.
Landscape Lighting Installation FAQs
Can I install low-voltage landscape lighting myself?
Many smaller 12V landscape lighting systems can be installed by homeowners who are comfortable following manufacturer instructions and applicable local requirements. More complex systems may benefit from professional design or installation.
How far apart should landscape path lights be?
There is no universal spacing because fixture output and beam pattern vary. However, approximately 8–12 feet apart is a useful starting point for many residential applications. Final spacing should be based on the actual fixture and desired lighting effect.
What size transformer do I need?
Add the wattage of all connected fixtures and select a transformer that can safely handle that load while meeting the transformer's manufacturer requirements. Using an 80% planning guideline, divide total connected wattage by 0.80 to estimate minimum transformer capacity.
What gauge wire should I use for landscape lighting?
Wire gauge depends on load, distance, system layout, and voltage requirements. Longer runs and higher loads generally benefit from heavier-gauge cable. Calculate voltage drop and follow the specifications of the equipment you're installing rather than choosing cable gauge solely by distance.
Can landscape lighting wire be buried?
Cable specifically rated for direct burial can be installed underground when installed according to its listing, manufacturer instructions, and applicable local requirements. Always call 811 before digging.
Why are my landscape lights dim at the end of the run?
Voltage drop is a common cause. Long cable distances, excessive load, undersized wire, poor connections, or system layout can all contribute. Measure voltage under load and verify that each fixture is receiving voltage within its specified operating range.
Should I use the 13V, 14V, or 15V tap on my transformer?
Higher-voltage taps on compatible multi-tap transformers can help compensate for voltage drop on longer runs, but the correct tap should be determined through system planning and actual voltage measurements. Always keep fixture voltage within the manufacturer's specified operating range.
Final Thoughts
A successful low-voltage landscape lighting installation starts with planning.
Take the time to determine what you want to illuminate, select the right fixtures, calculate your electrical load, properly size your transformer, plan sensible cable runs, and make connections designed for outdoor environments.
Then test the system after dark.
That final nighttime adjustment is what transforms a collection of outdoor lights into a cohesive landscape lighting design.
With thoughtful planning and quality components, a low-voltage landscape lighting system can provide years of beautiful, reliable illumination.
Continue Learning
New to landscape lighting? Start with our Complete Guide to Landscape Lighting: Design, Planning & Buying Tips.
For additional technical help, explore the Lone Mountain Lighting Learning Center for guides covering transformer sizing, fixture selection, voltage drop, maintenance, and outdoor lighting design.
Need help selecting fixtures or components for your project? Contact Lone Mountain Lighting or browse our professional-grade landscape lighting products.
